Red Jacket Submersible Turbine Pump

Name: Red Jacket Submersible Turbine Pump
Brand: KOEO
SKU: 35999541

Red Jacket Submersible Turbine Pump Introduction l Deliver faster, more reliable fuel flow for the lowest cost of ownership l Fixed speed submersible turbine pump that optimizes fuel flow o your dispensers l Available in 1HP and 2HP configurations and fixed or variable quick set lengths l New...

Send Inquiry

Red Jacket Submersible Turbine Pump Introduction

l Deliver faster, more reliable fuel flow for the lowest cost of ownership

l Fixed speed submersible turbine pump that optimizes fuel flow o your dispensers

l Available in 1HP and 2HP configurations and fixed or variable quick set lengths

l New and improved motor performance, which delivers higher flow rates

l Built in isolated contractor’s box for quicker and safer installation

l Automatic electric disconnect offers increased safety

l Check valve and manifold design for earlier line test and servicing.

Specification

Rating Pressure	0.1Mpa
Max Flow Rate	200LPM, 240LPM
Rotate Speed	2820RPM
Voltage	220v/50hz
Current	9A
Power	0.75Kw/1HP, 1.5kw/2HP
Ex-proof class	IP*6
Fixation Thread	BSPF4’’, BSPF/NPT4’’
Inlet	BSPF1 1/2’’, BSPF/NPT1 1/2’
Outlet	NPT2’’
Adjustable Pressure	21Kpa--207Kpa
Factory Pressure Range	79Kpa--93Kpa
Working Pressure	＞34Kpa
Media	Gasoline, diesel, kerosene

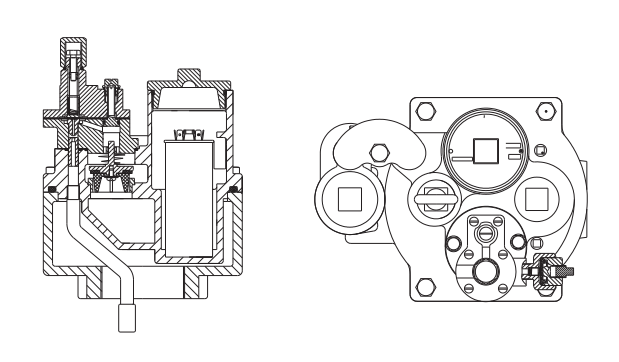

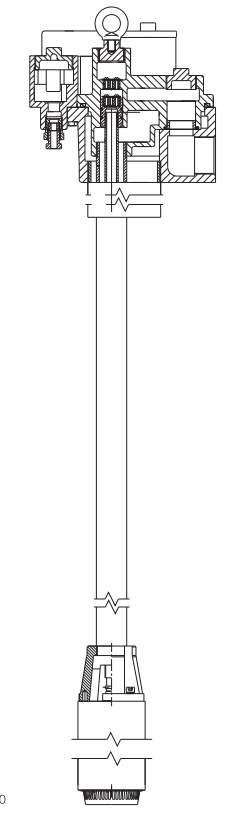

Product Details
