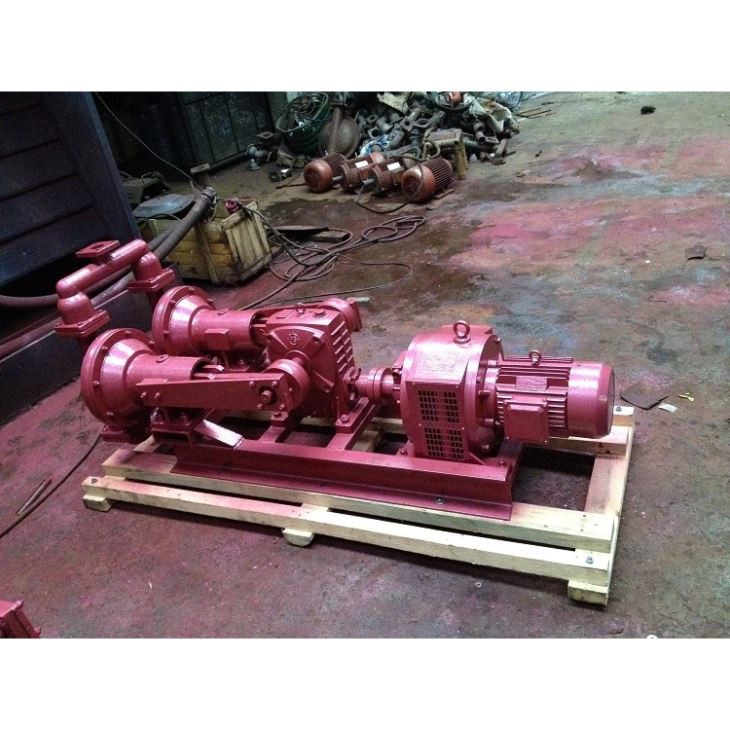

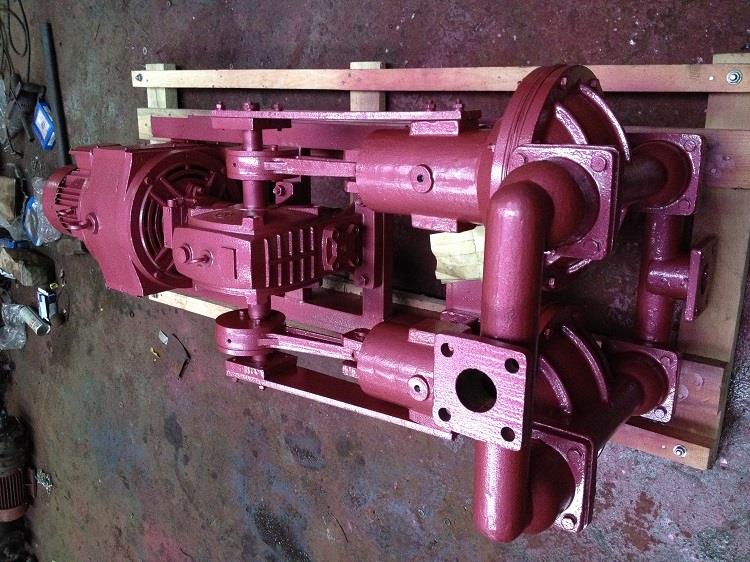

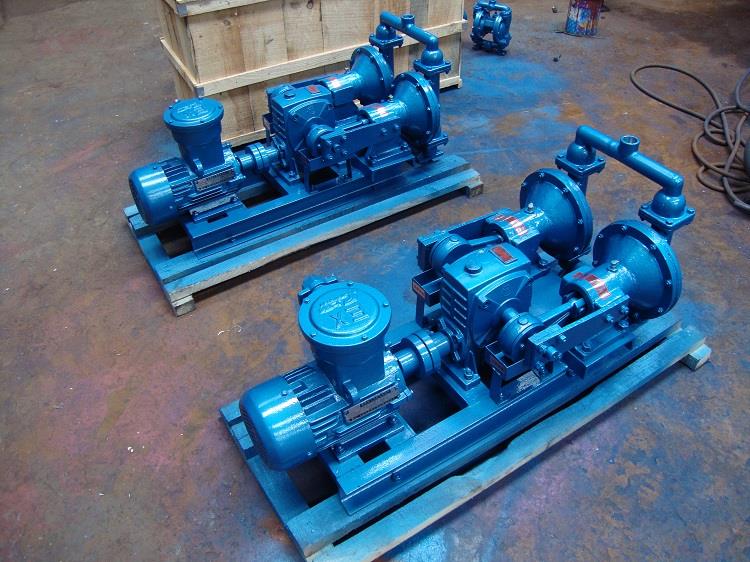

Turbine Type Electric Diaphragm Pump

Name: Turbine Type Electric Diaphragm Pump
Brand: KOEO
SKU: 36018443

Turbine Type Electric Diaphragm Pump Features 1. Widely used in waste water and sewage treatment, chemical and ceramic industries, mining, power plants, marine and offshore applications. 2. Incorporate the seal-less, dry running, low shear, versatile fluid handling capacities of traditional...

Send Inquiry

Turbine Type Electric Diaphragm Pump Features

1. Widely used in waste water and sewage treatment, chemical and ceramic industries, mining, power plants, marine and offshore applications.

2. Incorporate the seal-less, dry running, low shear, versatile fluid handling capacities of traditional diaphragm pump design.

3. Body material options are aluminum, 304 stainless steel, cast iron, polypropylene.

4. Wooden box package.

5. Please decide you need regular motor or explosion proof motors.

Specification

Model	DBY-10	DBY-15	DBY-25	DBY-40	DBY-50	DBY-65
Flow rate(m3/h)	0.5	0.75	3.5	4.5	6.5	8
Suction(m)	3	3	4	4	4.5	4.5
Head(m)	30	30	30	30	30	30
Discharge Pressure(kgf/cm2)	3	.	3	3	3	3
Motor(KW)	0.55	0.55	1.5	2.2	4	4
In/out Dia	3/8"	3/8"	1"	1 1/2"	2"(Flange)	2 1/2"(Flange)
