PD Meter & Pump

PD Flow Meter

Name: PD Flow Meter
Brand: KOEO
SKU: 108192198

Positive Displacement Flow Meter with excellent mechanism,with high accuracy and repeatability;Low Pressure loss and long life service;Solid quality and Multiple Choice.Meter with mechanical register,air eliminator and strainer;Meter with electronic register,air eliminator and solenoid valve;LPG Meter with mechanical register,differential valve,air eliminator;Preset Type....

Send Inquiry

Positive Displacment Flow Meter

*Robust Positive Displacement mechanical design

*Low Pressure loss,long service life

*Calibrator adjustable to 0.2% custody accuracy

*Materials:aluminum,viton seal,veeder-root register in gallons and litres

*Max pressure 10bar

*Max temperature 80℃

*Size range from 40mm to 100mm

Item	K-40	K-50	K-80	K-100
Size	40mm/1.5''	50mm,2''	80mm,3''	100mm,4''
Flow Range	25-250L/min	55-550L/min	115-1150L/min	170-1700L/min
Volume per Revolution	0.309L	0.681L	1.839L	5.102L
Max Pressure	10bar/150PSI
Accuracy	±0.2%
Repeatabilitiy	≤0.05%
Unit	Litre/Gallon

K-100

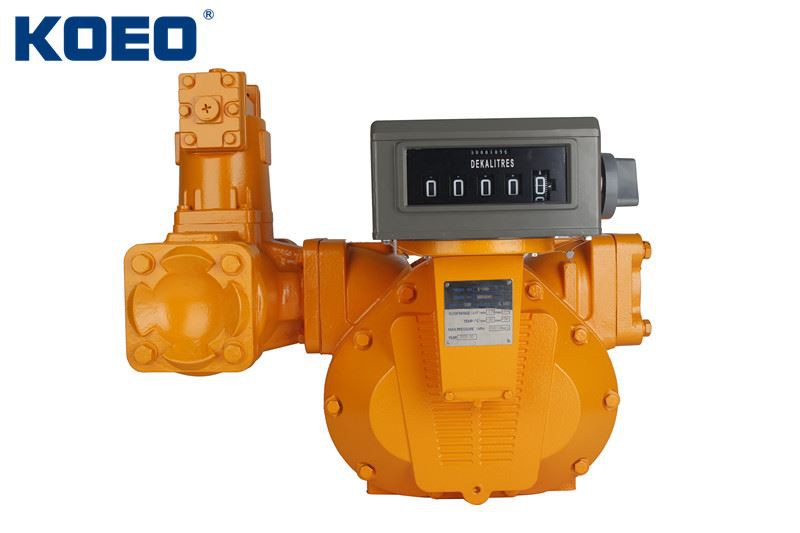

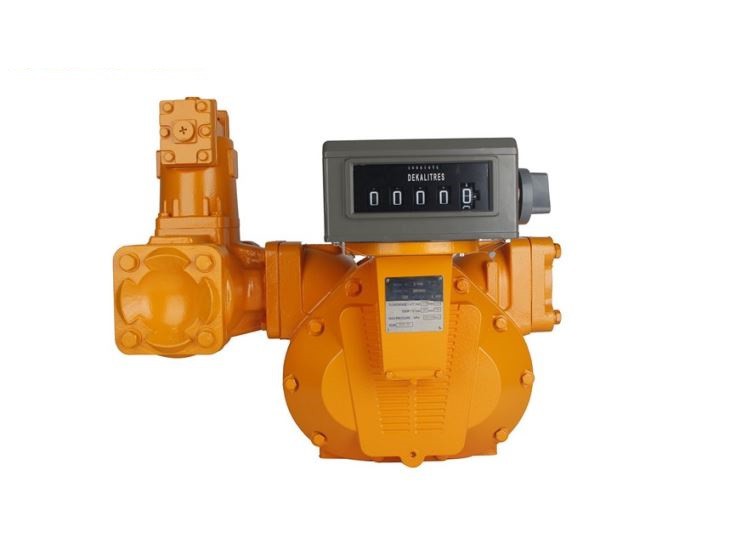

K-100 Meter with mechanical register,air eliminator and strainer
