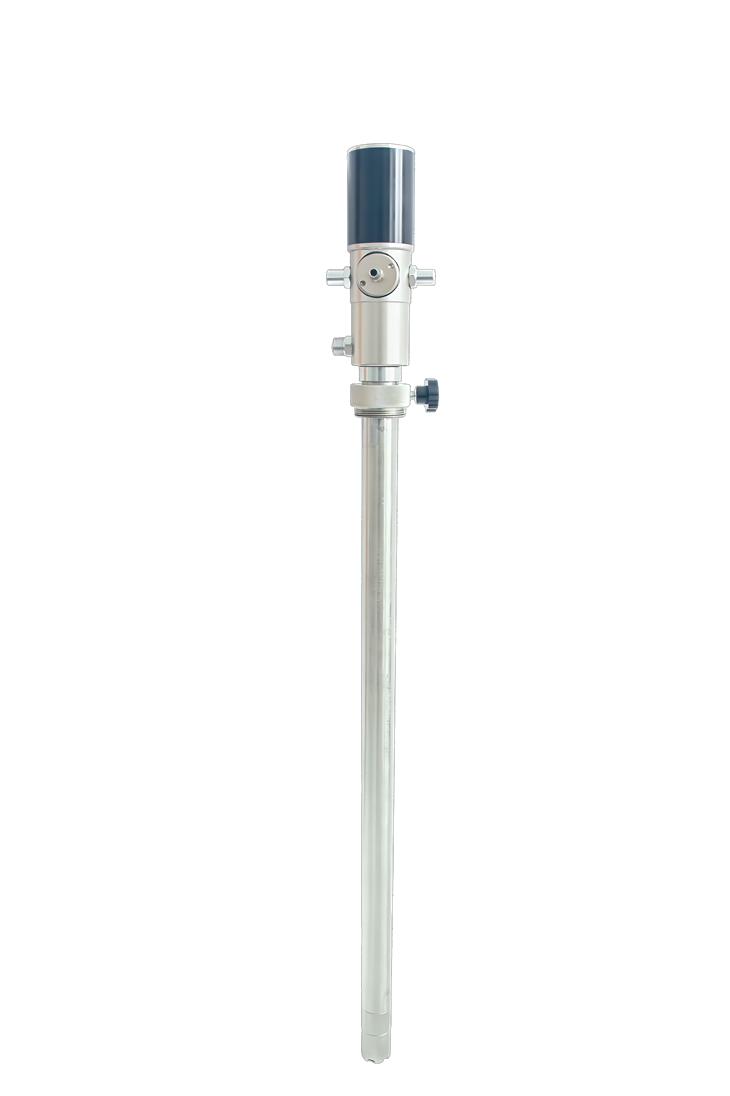

Pneumatic Oil Pump 3:1 And 5:1

Name: Pneumatic Oil Pump 3:1 And 5:1
Brand: KOEO
SKU: 205874243

Introduction  Air operated for integration into dispensing system.  Smart design with fewer parts for less pump wear & tear.  Differential air motor ensures smooth pumping.  Typical fluids handled include motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid.  Double action.  Supplied with adjustable 2" bung adapter Suitable for use of oil to SAE130（3:1）/ SAE240(5:1).

Send Inquiry

Introduction

Air operated for integration into dispensing system.

Smart design with fewer parts for less pump wear & tear.

Differential air motor ensures smooth pumping.

Typical fluids handled include motor oil, synthetic oil, hydraulic oil, gear oil and automatic transmission fluid.

Double action.

Supplied with adjustable 2" bung adapter Suitable for use of oil to SAE130（3:1）/ SAE240(5:1).

Technical Specification

MODEL	OP3	OP5
PRESSURE RATIO	3:1	5:1
AIR INLET PRESSURE	5-8bar / 70-115psi	5-8bar / 70-115psi
MAX FLUID PRESSURE	24bar / 350psi	40bar / 580psi
AIR MOTOR EFFECTIVE DIAMETER	63mm / 2.5"	63mm / 2.5"
AIR CONSUMPTION (MIN)	@ 8bar 110L @115 psi 3.9CFM	@ 8bar 125L @115 psi 4.5CFM
MAX. FREE FLOW RATE (MIN)	12L / 3.2gallon	14L / 3.7gallon
SUCTION TUBE DIAMETER	42mm / 1-5/8"	42mm / 1-5/8"
SUCTION TUBE LENGTH	Wall mounted: 270mm / 10-5/8" Drum application: 50-60L/ 13-16gallon 730mm / 28-3/4" Drum application: 180-220L/ 48-58gallon 940mm / 37”	Wall mounted: 270mm / 10-5/8" Drum application: 50-60L/ 13-16gallon 730mm / 28-3/4" Drum application: 180-220L/ 48-58gallon 940mm / 37”
AIR INLETCONN SECTION	1/4" quick plug 1/4"NPT Female	1/4" quick plug 1/4"NPT Female
OIL OUTLET CONNECTION	1/2" M	1/2" M
WEIGHT	Wall mounted: 5kgs / 11lbs Drum application: 50-60L 5.5kgs / 12lbs Drum application: 180-220L 6kgs / 13lbs	Wall mounted: 5kgs / 11lbs Drum application: 50-60L 5.5kgs / 12lbs Drum application: 180-220L 6kgs / 13lbs
PACKAGING DIMENSION	Wall mounted 13x13x62cm / 5.1"x5.1"x24.4” Drum application: 50-60L: 13x13x108cm 5.1"x5.1"x42.5” Drum application: 180-220L 13x13x128cm 5.1"x5.1"x50.4”	Wall mounted 13x13x62cm / 5.1"x5.1"x24.4” Drum application: 50-60L: 13x13x108cm 5.1"x5.1"x42.5” Drum application: 180-220L 13x13x128cm 5.1"x5.1"x50.4”

FAQs

What types of applications are suitable for pneumatic oil pump?

Pneumatic oil pump is suitable for applications that require high-pressure oil transfer, such as in the automotive and manufacturing industries.

Can pneumatic oil pump be used in harsh environments?

Yes, the pump is made of high-quality materials that are resistant to corrosion, making it ideal for use in harsh environments.

How is the flow rate of pneumatic oil pump adjusted?

The pump's flow rate can be adjusted to meet specific requirements.

What are the maintenance requirements for pneumatic oil pump ?

Pneumatic oil pump requires minimal maintenance, reducing downtime and maintenance costs.

Is pneumatic oil pump a fast and efficient solution for oil transfer?

Yes, the pump is capable of delivering oil quickly and efficiently, reducing downtime and increasing productivity.
