Stainless Steel Oval Gear OGM Flow Meter

Name: Stainless Steel Oval Gear OGM Flow Meter
Brand: KOEO
SKU: 115709698

Stainless Steel Oval Gear Flow Meter Description OGM-machinery and electronic series aluminum oval gear meter has ability to handle a wide range of fluid viscosities with exceptional leels of repeatability and durability,applying in the petroleum,chemical etc. Main Features *The OGM Series oval...

Send Inquiry

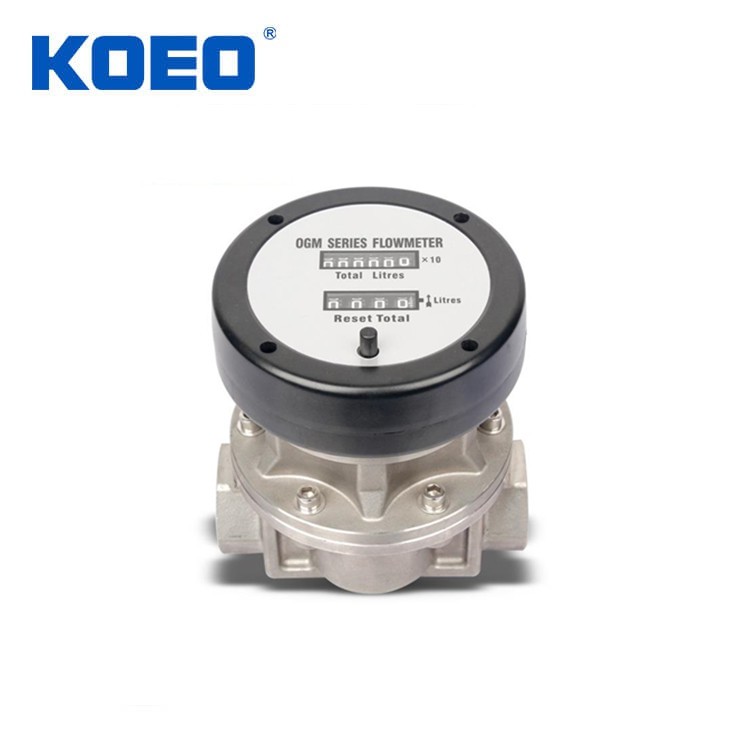

Stainless Steel Oval Gear Flow Meter

Description

OGM-machinery and electronic series aluminum oval gear meter has ability to handle a wide range of fluid viscosities with exceptional leels of repeatability and durability,applying in the petroleum,chemical etc.

Main Features

*The OGM Series oval rotor positive displacement flow meters will measure your high or varying viscosity liquids;
*The body takes high pressures and is available in either aluminum PPS;

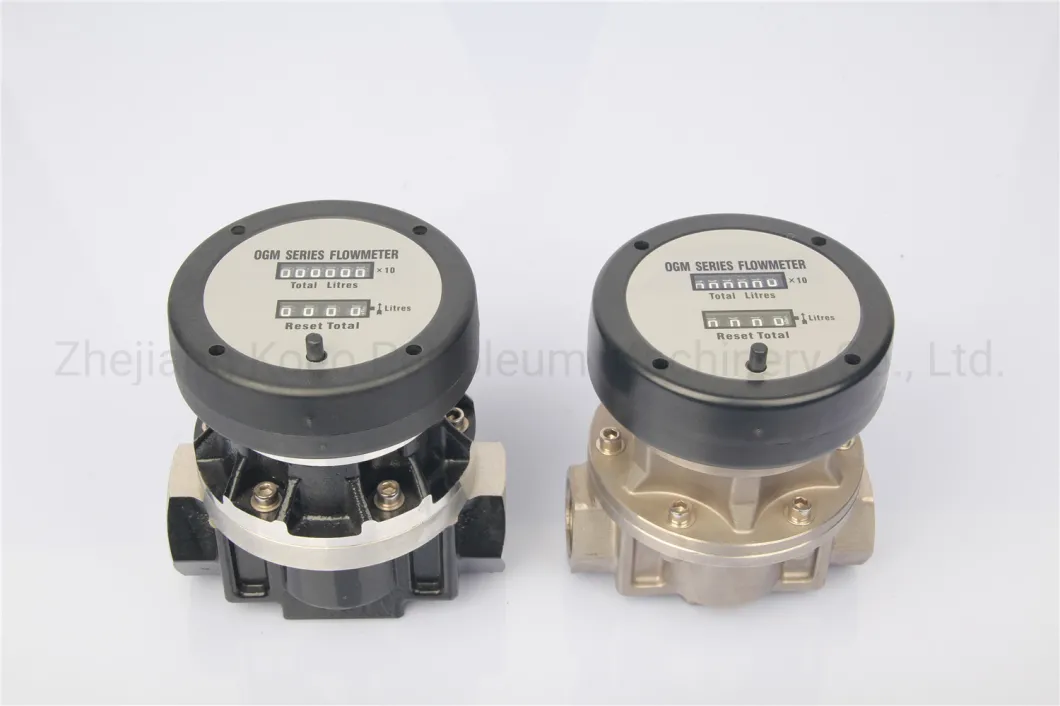

*The meter can be supplied with a low cost mechanical totaliser or an LCD display mounted on the top of the flow meter;
*We have a range of instruments to suit all your requirements;
*The rotors are either ryton(PPS) or stainless steel making it suitable for a wide range of fuels,oils and chemicals;

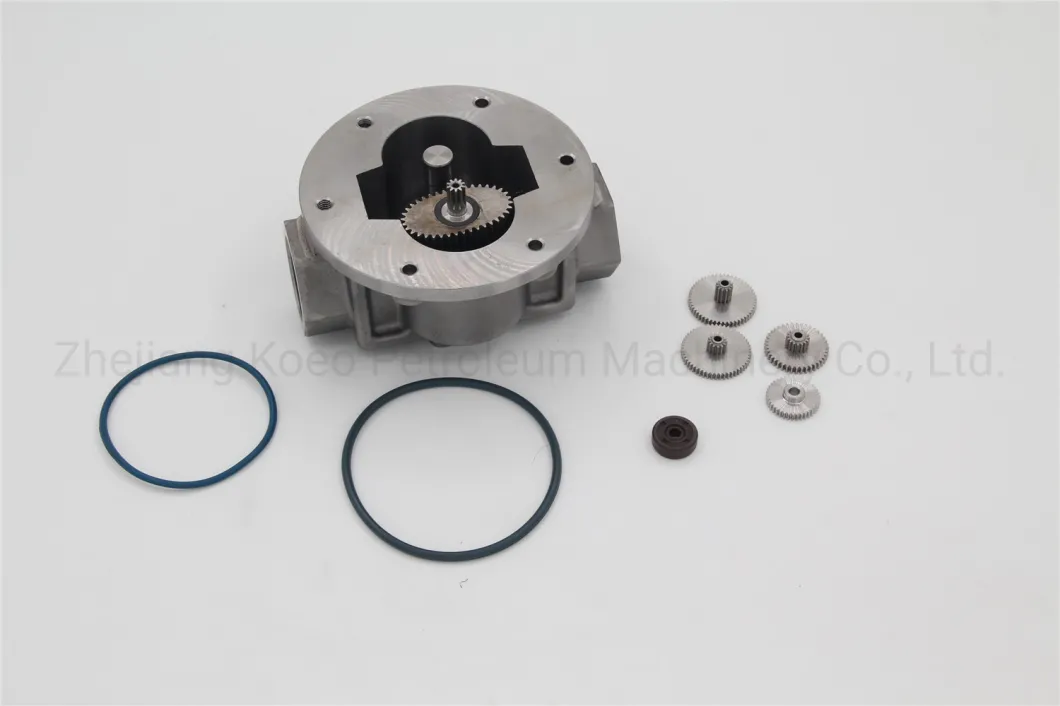

*The OGM Series operates on the oval rotor principle.Two oval rotors rotate on stainless steel shafts and sweep the measuring chamber.Each revolution of the rotos measures a precise volume of liquid through the meter.This volume is independent of the viscosity and density of your liquid;
*You can mount the flow meter either horizontally or vertically and can use it in either pumped or gravity feed applications.An upstream filter is recommended to prevent particles damaging your flow meter.

Specification

Model	OGM-25	OGM-40	OGM-50	OGM-25E/25P	OGM-40E/40P	OGM50E/50P
Size	25mm	40mm	50mm	25mm	40mm	50mm
Flow Range	20-120LPM	25-250LPM	30-300LPM	20-120LPM	25-250LPM	30-300LPM
Accuracy	+-0.5%
Repeatability	<=0.03%
Max Viscosity	1000CPS
Working Pressure	0.3Mpa

About US

Zhejiang Koeo Petroleum Machinery Co., Ltd, CCCPI member, which was established in 1990, specialized in manufacturing refueling equipments, including fuel nozzles,flow meters, fuel transfer pumps, connecting swivels, and other fuel dispenser equipments.

We are an intergrated company in petroleum equipment and valve industry,we have passed through the SIRA Certication Service, as well as satisfied with ISO 9001 standards.

Stainless Steel Oval Gear Flow Meter

Attend Exhibition Every Year

Our Service

Immdiately reply for the inquiry within 6 hours
Practical advice or solutions for your case after learning from your request
Genuine helpful and satisfactory after-sale Service
CE certification and ISO:9001 for products, 1 year guarantee

Stainless Steel Oval Gear Flow Meter

FAQ

Q1:Are you factory?
A.:Yes,we are manufacture since 1990.We have rich producing experience and quality control.

Q2:Does your company or your product have any certification?
A:yes,we have ISO,CE cetification,and patent also.

Q3:What is your sample policy?
A:Normally customer should pay both for sample and shipping charge.

Q4:What is your MOQ?
A:Different product with different MOQ,can be discussed.

Q5:What is the terms of the payment?
A:TT before shipment.

Q6:How about your delivery time?
A:We can dispatch within 3days if in stock.Normally within 20-35days for bulk order.

Q7:What is your packing?
A:Standard Export Packing

Q8:How do you make long-term business and good relationship with your customers?
A:We keep good quality and competitive price to ensure our customers' benifit,still take our customers' questions be first,make quick response and resolve ability if meet quality issue.
