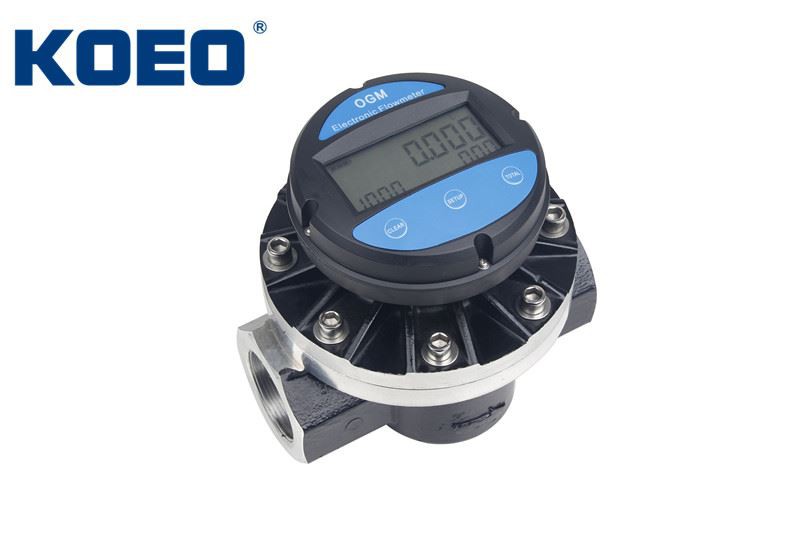

Electronic Oval Gear Flow Meter

Name: Electronic Oval Gear Flow Meter
Brand: KOEO
SKU: 109054905

OGM mechanical oval gear flow meters are positive displacement flow meter with mechanical display, designed to cover a brand range of industrial fluid measurement applications. It is ideally suited to applications requiring accurate dispense quantities. Measurement of very low flow rates, small batch size, viscous products and non-conductive liquids are all ideal uses for this meter.

Send Inquiry

Description

OGM digital/electronic oval gear flow meters are positive displacement flow meter with mechanical display, designed to cover a brand range of industrial fluid measurement applications.The material contains aluminum and stainless to meet different requirement.Widely used in industrials of petroleums,chemical processing and etc.

Features

·Compact Size,easy maintenance

·Easy to read and operate mechanical display and LCD display

·Horizontally and vertically flexibility of installation options

·Low Pressure Drop

Packing

· Standard outer packing

More details you'd like to know,welcome to contact us!!

Specification

Model	OGM-25E	OGM-40E	OGM-50E
Size	1’’	1 1/2’’	2’’
Min Flow(L/min)	20	25	30
Max Flow(L/min)	200	250	300
Accuracy	±0.5%
Repeatability	≤0.03%
Max Viscosity	1000CPS
Max Pressure	3.4Mpa	1.8Mpa	1.8Mpa

_MG_3788_副本
