Measuring Fuel Nozzle With Mechanical Meter

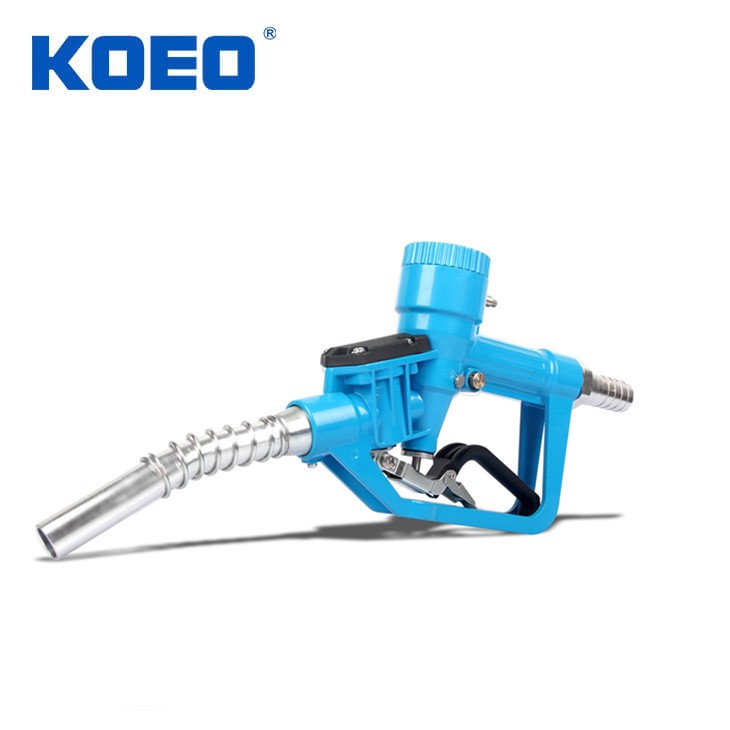

LLY-25S automatic nozzle with mechanical flow meter, Koeo factory own patented product. Three notches auto shutoff function, Liter reading flow meter, no need attach meter again, easy to operate, ideal fuel filling choice.

Only 25mm, 1'' available so far. 360 degree swivel included.

No Koeo marks on final product, neutral. Every piece would be calibrated before shipping.

Specification

Attention

1.Insure working pressure within 0.15Mpa-0.3Mpa;
2.Different medias have a margin of error,for viscosity and density varies.Revised formula as below:
Actual Fuel Amount=Meter Amount*Modified Coefficient

P.S.
Modified Coefficient
1)While kerosene,modified coefficient=0.994
2)While diesel,oil temperature>10.modified coefficient=0.978,while<=10,then 0.957
Example"diesel temperature 14,meter amount says 150L,then actual fuel amount is 150*0.978=146.7L
3.This nozzle is not appliable to water or other corrosive oxidizing fluids.
4.Be gentle while using it.

Photo Show
